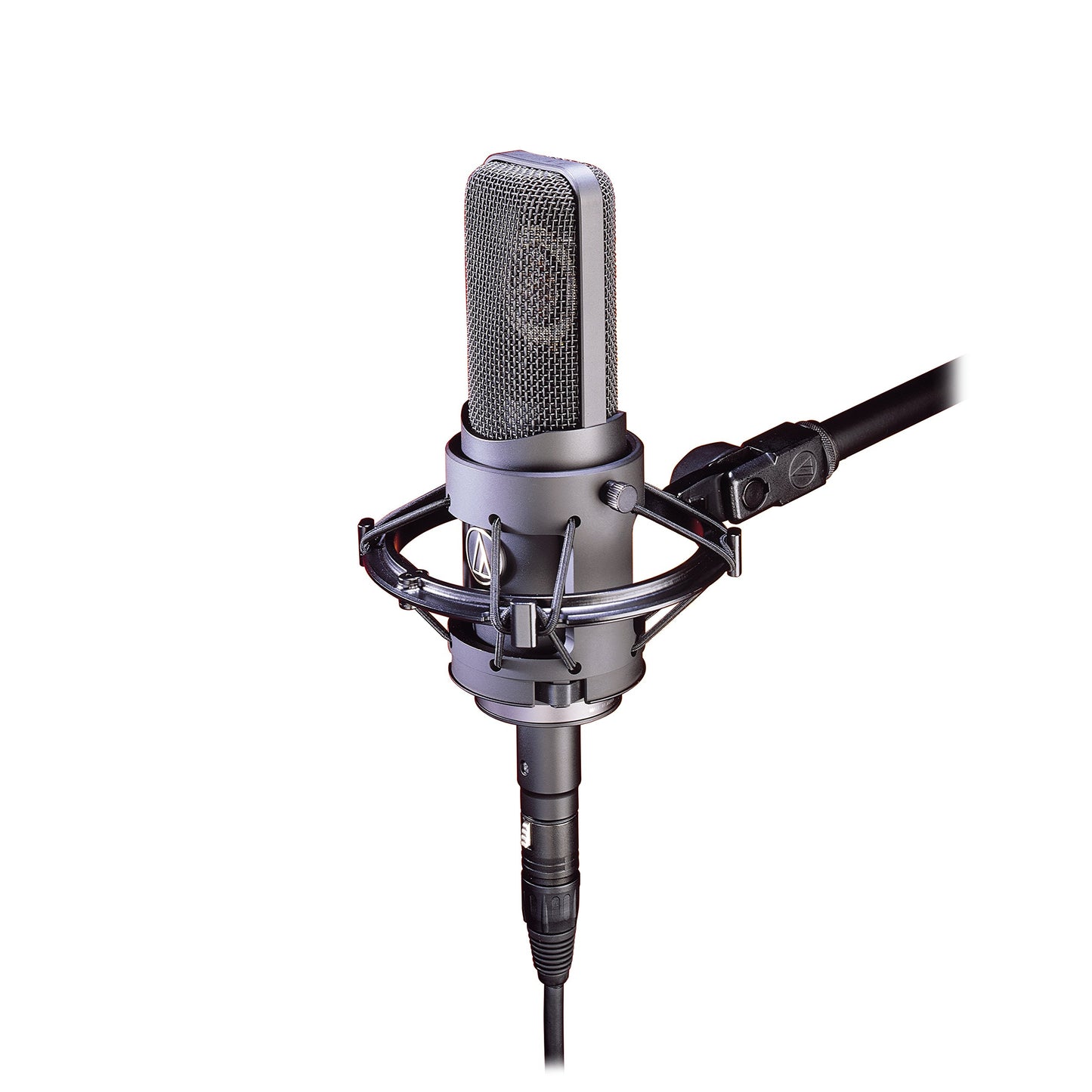

Audio-Technica AT4060

• Vintage tube sound with the versatile performance necessary for the most demanding studio applications
• Wide dynamic range, low self-noise and high max SPL capability
• The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
• Hand-selected tubes are individually tested and aged to maintain peak performance
• Large coupling transformer provides superior low-frequency linearity
• Custom shock mount provides superior isolation

TECH SPECS:

Element: Externally polarized (DC bias) condenser

Polar Pattern: Cardioid

Frequency Response: 20-20,000 Hz

Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa

Maximum Input Sound Level: 150 dB SPL, 1 kHz at 1% T.H.D.; 149 dB SPL, 1 kHz at 0.5% T.H.D.

Noise: 19 dB SPL

Dynamic Range: 131 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa

Power Requirements: AT8560 power supply (120V/230V AC)

Cable: 32.8' (10 m) cable with 6 pin XLR-type connectors for use between microphone and power supply; AC power supply cable

Output Connector: XLRM-type (on power supply)

Accessories Included: AT8560 power supply; AT8447 shock mount for 5/8"-27 threaded stands; rack-mount adapters for power supply; protective mic carrying case
