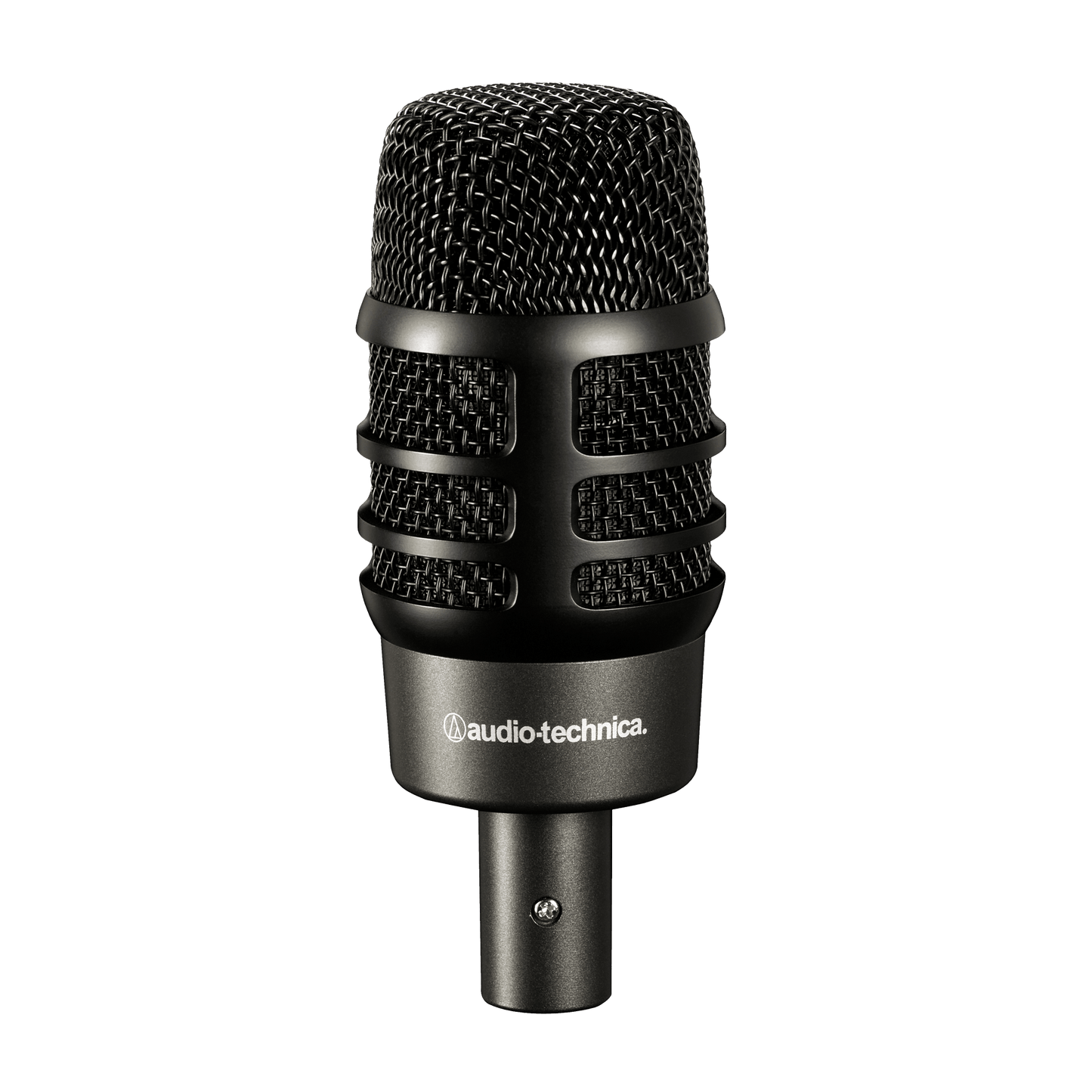

Audio-Technica ATM250DE
Audio-Technica ATM250DE
- Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
- Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
- Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
- Perfect for kick drum, guitar amps, percussion and other instruments
- Integral 80 Hz HPF switch and 10 dB pad (condenser element)
- Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
- Corrosion-resistant contacts from gold-plated XLRM-type connector
- Rugged, all-metal design and construction for years of trouble-free use
TECH SPECS:
Element: Condenser, dynamic
Polar Pattern: Cardioid (condenser), Hypercardioid (dynamic)
Frequency Response: 40 - 20,000 Hz (condenser), 40 - 15,000 Hz (dynamic)
Low Frequency Roll Off: 80 Hz, 12 dB/octave (condenser)
Open Circuit Sensitivity: -49 dB (3.5 mV) re 1V at 1 Pa (condenser), -53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D. (condenser), 158 dB SPL, with 10 dB pad (nominal)
Dynamic Range: 122 dB, 1 kHz at Max SPL (condenser)
Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa (condenser)
Phantom Power Requirements: 11-52V DC, 3.5 mA typical (condenser)
Switches: Flat, roll-off; 10 dB pad (condenser only)
Cable: 5.0 m (16.5') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors
Output Connector: Integral 5-pin XLRM-type
Accessories Included: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch
